Double screw sleeve reinforcement connection scheme for vertical main reinforcement of reinforced concrete in PC building

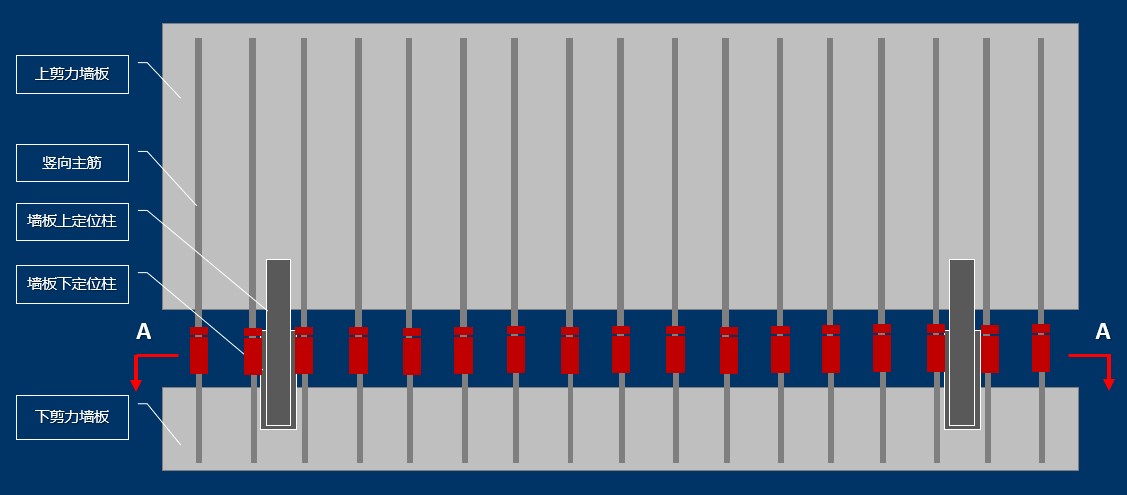

Connection scheme 1
Connection scheme 2 (basically consistent with the connection mode of grouting joint)

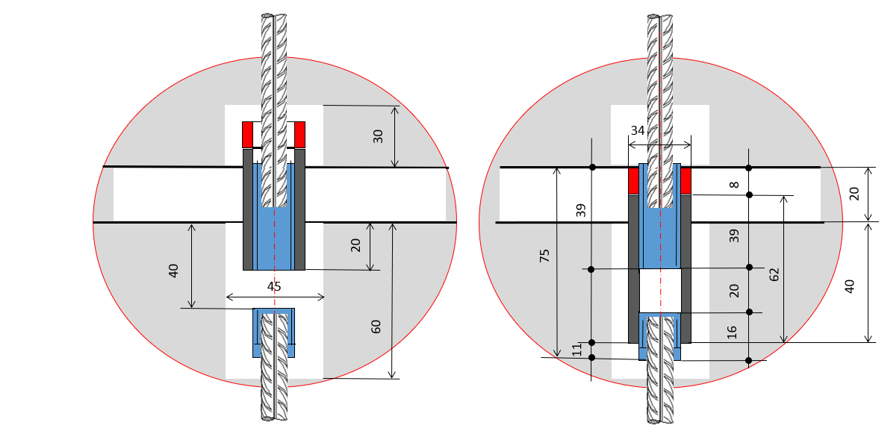

- Reinforcement specification: 16 mm Joint length: 75 mm
- Joint outer diameter: 34 mm Inner diameter of concrete hole: 45-50 mm
- Inner screw sleeve L1: 16 mm Inner screw sleeve L2: 39 mm Outer screw sleeve L3: 62 mm

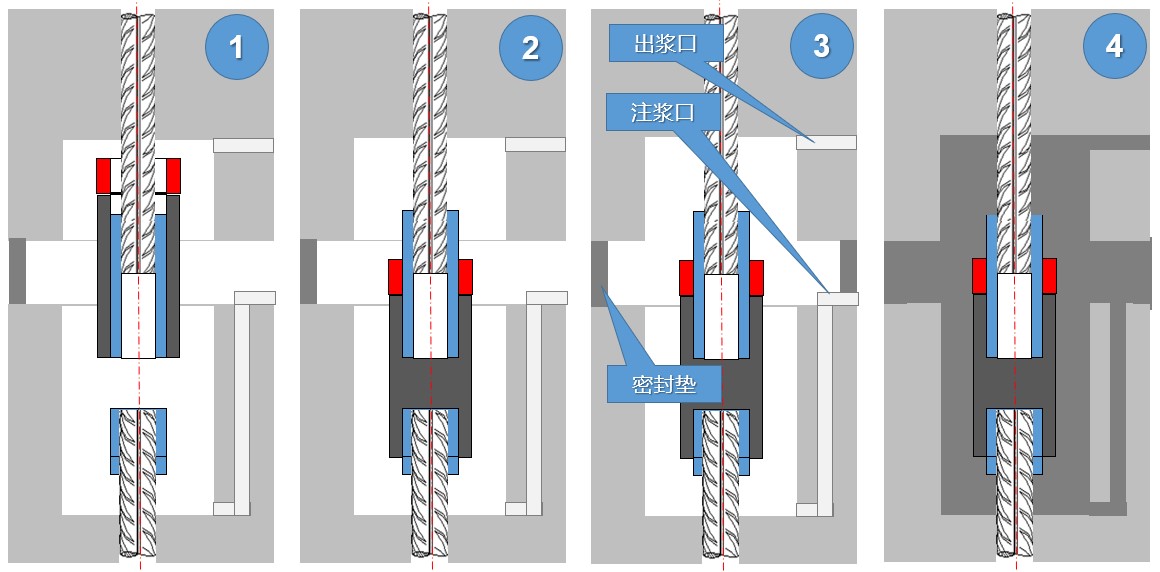

Connection steps: 1. In place 2. Connection 3. Sealing 4. Grouting

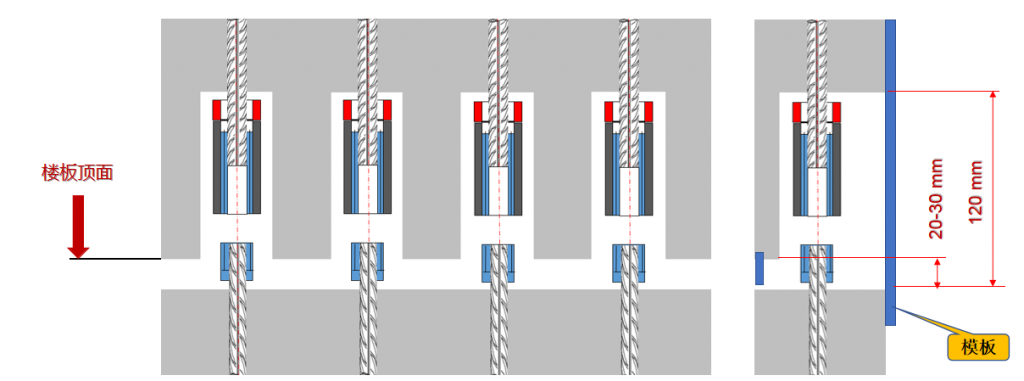

Connection scheme 3
